YUR 41
The support for lying is a collapsible frame with right angles from a profile pipe 28x25x1.5 mm with elastic elements (lamellas) 53 mm wide and 8 mm thick made of birch veneer, installed in overhead plastic lamella holders, and brackets for installing legs. Number of slats 14 pcs. in a single support and 28 pcs. in a double base. The support is completed with 4 legs with a diameter of 51 mm and 2 legs from a profile pipe 28x25x1.5 mm The support has a decorative and protective powder coating applied on an automatic painting line. The support is certified in the voluntary certification system and has a certificate of conformity.
Dimensions
1884х790mm (YUR 42-02)
1884х890mm (YUR 42-03)
1984х790mm (YUR 42)
1984х890mm (YUR 42-01)
1984х1188mm (YUR 41)
1984х1388mm (YUR 41-01)
1984х1588mm (YUR 41-02)
1984х1788mm (YUR 41-03)
1884х1188mm (YUR 41-04)
1884х1388mm (YUR 41-05)
1884х1588mm (YUR 41-06)
1884х1788mm (YUR 41-07)
YUR 12
The support for lying is a collapsible frame with right angles from a profile pipe 28x25x1.5 mm with elastic elements (lamellas) 53 mm wide and 8 mm thick made of birch veneer, installed in overhead plastic lamella holders. Number of slats 14 pcs. in a single support (YUR 03) and 28 pcs. in a double support (UR 12). The support is completed with brackets, legs and a transverse connecting pipe for installing the support into the bed. The support has a decorative and protective powder coating applied on an automatic painting line. The support is certified in the voluntary certification system and has a certificate of conformity.
Dimensions
1984х690mm (YUR 03-02)
1984х790mm (YUR 03)
1984х890mm (YUR 03-01)
1984х1188mm (YUR 12)
1984х1388mm (YUR 12-01)
1984х1588mm (YUR 12-02)
1984х1788mm (YUR 12-04)
1984х1988mm (YUR 12-05)
YUR 92
The lying support is a collapsible frame with rounded corners made of a profile pipe 30x30x1.5 mm with elastic elements (lamellas) made of birch veneer, installed in cut-in plastic lamella holders, and brackets for installing legs. The number of lamellas in a single support is 14 pcs., in a double support — 28 pcs. The support is completed with 4 legs from a pipe with a diameter of 57 mm and 1 central leg from a pipe 30x30x1.5 mm The support has a decorative and protective powder coating applied on an automatic painting line. The support is certified in the voluntary certification system and has a certificate of conformity.
Dimensions
2000х800mm (YUR 92)
2000х900mm (YUR 92-01)
2000х1200mm (YUR 92-02)
2000х1400mm (YUR 92-03)
2000х1600mm (YUR 92-04)
2000х1800mm (YUR 92-05)
2000х2000mm (YUR 92-06)
YUR 94

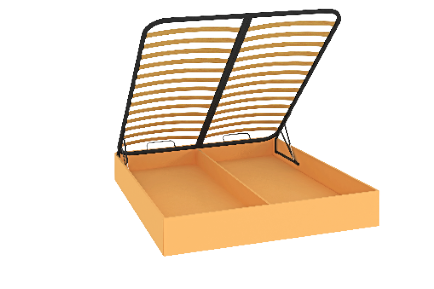

The lying support is a collapsible frame with rounded corners made of a profile pipe 30x30x1.5 mm with elastic elements (lamellas) 53 mm wide and 8 mm thick made of birch veneer, installed in cut-in plastic lamella holders. The number of lamellas in a double support is 26 pcs., in a single support — 13 pcs. The support kit includes a lifting mechanism (gas lifts with forces of 500H, 800H, 1150H), supports for access to the space of the linen box, mattress holders, and, if desired, the linen box itself in various colors. The support has a decorative and protective powder coating applied on an automatic painting line. The support is certified in the voluntary certification system and has a certificate of conformity.
Dimensions
2000х800mm (YUR 94)
2000х900mm (YUR 94-01)
2000х1200mm (YUR 94-02)
2000х1400mm (YUR 94-03)
2000х1600mm (YUR 94-04)
2000х1800mm (YUR 94-05)
YUR 96
The lying support is a collapsible frame with rounded corners made of a profile pipe 30x30x1.5 mm with elastic elements (lamellas) 53 mm wide and 8 mm thick made of birch veneer, installed in overhead plastic lamella holders. The support kit includes a lifting mechanism (gas lifts with forces of 500H, 800H, 1150H), supports for access to the space of the linen box, mattress holders, and, if desired, the linen box itself in various colors. The number of lamellas in a double support is 28 pcs., in a single support — 14 pcs. The support has a decorative and protective powder coating applied on an automatic painting line. The support is certified in the voluntary certification system and has a certificate of conformity.
Dimensions
1950х800mm (YUR 96)
1950х900mm (YUR 96-01)
1950х1188mm (YUR 96-02)
1950х1388mm (YUR 96-03)
1950х1588mm (YUR 96-04)
1950х1788mm (YUR 96-05)
YUR 47
The support for lying is a collapsible frame with right angles from a profile pipe 30x30x1.5 mm with elastic elements (lamellas) 53 mm wide and 8 mm thick made of birch veneer, installed in overhead plastic lamella holders. The number of lamellas in a double support is 28 pcs., in a single support — 14 pcs. The support kit includes a lifting mechanism (gas lifts with forces of 500H, 800H, 1150H), supports for access to the space of the linen box, mattress holders, and, if desired, the linen box itself in various colors. The support has a decorative and protective powder coating applied on an automatic painting line. The support is certified in the voluntary certification system and has a certificate of conformity.
Dimensions
1950х890mm (YUR 47-04)
1950х1188mm (YUR 47-01)
1950х1388mm (YUR 47-02)
1950х1588mm (YUR 47)
1950х1788mm (YUR 47-03)
